A 0.01 in. w.g. minimum differential is often cited on isolation-room drawings, but no sheet metal panel produces that number. The enclosure houses and protects the monitoring device; the pressure relationship itself comes from room construction, adjacent spaces, HVAC airflow, controls, and commissioning.
I see the same structural failure mode repeatedly across Hudson County occupied healthcare work. A contractor treats the monitor panel as a standalone compliance artifact, orders a box, and leaves sensor tubing, wiring, wall construction, and controls uncoordinated until the wall is framed. That sequence guarantees field improvisation.
Pressure criteria belong to the engineer of record, the project’s adopted healthcare ventilation standards, and the authority having jurisdiction. We fabricate the enclosure to the approved submittal. We do not certify the room, and I will not pretend a stainless box does that work.
Our operating geography runs from the Kearny shop on Garfield Avenue into the Jersey City Waterfront healthcare corridor, where phased renovations keep clinical areas live while walls go up around them. That distance is short. The coordination distance is not.
Resolve the monitor cutout, the wall-mounted device, and the sensor-line route in three separate conversations and the field crew inherits the difference. Openings land in the wrong place, sealing gets improvised, and wall closure stalls inside an occupied isolation or laboratory area behind infection-control barriers with a reserved elevator window ticking down.
Billable labor burns on refitting, finished wall assemblies get opened back up, and other trades sit idle waiting on a field dimension nobody confirmed. The gasketed airtight penetration is the interface detail that must be settled before fabrication, not during installation.
Field symptoms we see on these jobs:
Nothing touches the 250-ton Accurpress until the digital front end closes. We ingest the contractor’s BIM or CAD files, review the submittal, build a cutout schedule, and confirm field dimensions, and each step depends on the one before it. Skip the field confirmation and the brake forms a panel to a drawing that no longer matches the wall.
A focused take-off surfaces the open coordination questions early: device model, tubing diameter, conduit path, mounting method, access clearance. Those answers belong to the engineer and contractor, so we return them for review rather than guessing at intent. This is where a compressed submittal cycle in a phased hospital renovation either holds or collapses.
I spent years running take-offs before I ever owned a brake, and that background shapes how the shop reads a drawing set. A cutout schedule that flags a conflict on paper costs nothing. The same conflict discovered at the wall costs a crew a shift.
Our estimation window runs 4 to 24 hours on a clean drawing package, which matters when a submittal revision lands on a Friday and the wall closes Tuesday. The speed is only useful because the questions come back attached.
Material selection follows the submittal, not a shop preference. Where the approved document set calls for 304 stainless steel, we form 304 stainless, and the finish and thickness are fixed by that same approved package. Exposure conditions, cleaning protocols, and the engineer’s specification drive the grade decision before we cut anything.

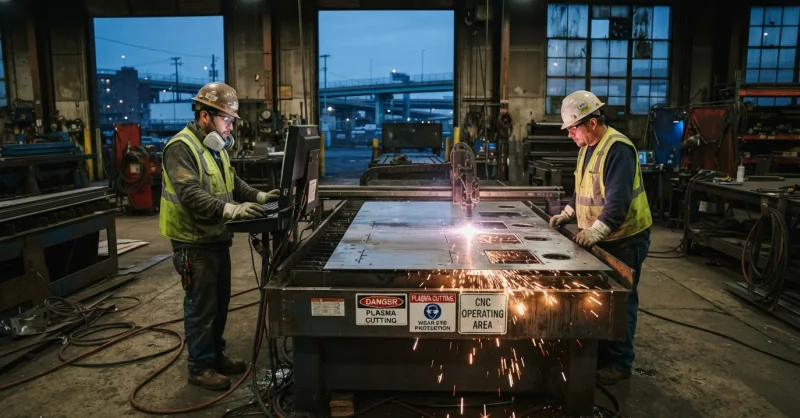

CNC laser profiling handles the panel cutouts and repeatable mounting patterns, which keeps a small custom batch dimensionally consistent from the first unit to the last. The 250-ton Accurpress forms the enclosure bends and returns, and we fabricate access panels, mounting flanges, and edge details to match the approved geometry.
Repeatability is the real value on a batch of eight or twelve units for a phased renovation. When every panel matches, the installer stops measuring and starts mounting, and the second and third isolation rooms move faster than the first.
Stainless punishes sloppy handling. We protect finished faces through forming and staging because a scratched panel on a healthcare floor becomes a remade panel, and remaking a panel inside an occupied facility is a schedule event nobody budgets for.
Every penetration is a coordinated interface across tubing, cable, conduit, device, and wall construction, and we resolve it with the device manufacturer and the approved project documents. The gasketed airtight penetration detail is only as good as the coordination behind it.
Scope lines matter here. SMACNA Class A seal language applies to applicable duct construction or interfaces under the governing specification, and it is not a substitute for a listed enclosure or penetration system. Firestopping, infection-control requirements, and inspection responsibilities get confirmed with the engineer of record and the AHJ, because no single detail establishes compliance on its own.
Coordination ownership by penetration type:
When those owners are unnamed on the drawing, the field crew becomes the default owner, and that is how a sealed wall gets opened twice.
The decision factor that separates a supply house order from an engineered package is coordination, not price per box. Four parameters drive the comparison on Hudson County healthcare work.
| Decision factor | Generic supply house or spot-market vendor | HVAC Metals CNC and logistics architecture |
|---|---|---|
| Enclosure fit and cutouts | Standard stock dimensions may require field adaptation | CNC-profiled custom stainless steel enclosure built from approved drawings and confirmed dimensions |
| Penetration coordination | Field crew resolves mismatched openings or sealing details | Gasketed airtight penetration coordinated with tubing, cable, conduit, device, and wall details before fabrication |
| Material and interface scope | Material grade and adjacent duct-sealing responsibility may be unclear | 304 stainless steel specified per submittal, with enclosure details distinguished from applicable SMACNA Class A seal requirements |
| Hudson County delivery coordination | General dispatch with limited project-specific staging detail | Dedicated account coordination for access windows, hoist or elevator constraints, and bundled job materials |
This is a clearly labeled scenario drawn from the pattern of phased healthcare work, not a claim about a named hospital or a verified site defect. A mechanical contractor executing a phased isolation-room and laboratory upgrade at a large Jersey City healthcare facility, fabricated through our Kearny operation, hits the mismatch during submittal coordination: the monitor cutout, the wall-mounted device, and the proposed sensor-line route do not agree, and the existing detail leaves the penetration and service-access approach undefined.
The wall closes in days, and the occupied clinical area’s access and infection-control plan cannot absorb a field rework cycle. So the package comes back to the shop before release.
We ingest the approved CAD and BIM information and verify field dimensions against the actual wall. From there, CNC profiling and forming produce the custom stainless steel enclosure in the specified 304 stainless steel, with the display opening, mounting, finish, and service access coordinated to the device. The gasketed airtight penetration gets detailed with the device manufacturer and project team, and SMACNA Class A seal language applies only where the specification requires it on ductwork or interfaces.
The revised detail returns to the engineer and contractor for review before release to fabrication. That review step is the whole point of the exercise.
Outcomes stay inside what project records support: accepted dimensions, reduced field modification, and installation completed within the planned access window. We do not claim pressure performance, code approval, or schedule savings from a panel fabrication scope.
Fabrication release starts a logistics problem with hard edges. Jersey City loading areas are tight, occupied facilities run narrow access windows, infection-control barriers reroute carts and crews, and elevator or hoist reservations expire on someone else’s schedule. Traffic on the NJ Turnpike and the Lincoln Tunnel approaches adds variance nobody controls.
We stage from the Garfield Avenue headquarters with dedicated account coordination and early-bird delivery, scheduled against a confirmed order, site access, and route plan rather than a promised clock time. A 6:00 AM on-deck delivery works when the receiving dock is actually open at six and the hoist window is actually reserved.
Bundling job materials into the same run cuts the number of deliveries competing for that window. For eligible recurring commercial accounts, Net-30 and Net-60 terms keep the procurement side from delaying a release that the schedule needs.
Run this verification set with the engineer of record and the AHJ before the package goes to fabrication:
Three engagement points cover the range of where you sit: send drawings for a blueprint take-off, request a material and compliance review against project documents, or release approved dimensions straight to fabrication and delivery staging. Start with the custom sheet metal fabrication capabilities or the project intake desk, and the account manager will flag drawing conflicts, access constraints, and route risks between Kearny and the site before the package locks.
Written by: Arthur Dabrowski
Owner & CEO, HVAC Metals, LLC (Kearny, NJ)
